SPECIFICATIONS

Brand Name: NoEnName_Null

Product Type: Tablet LCD

Origin: Mainland China

Hign-concerned Chemical: None

Type: Whiteboard

Whiteboard Type: Interactive Whiteboard

Folded: NO

Brand Name: Wanbao

Model Number: LED65H7Q

Place of Origin: Guangdong, China

Product name: H7Q 65" Interactive Whiteboard

Application: Education.Training.Office

Material: Aluminum Case+Tempered Glass Panel

Size: 65/75/86/100 Inch

Certificates: CE/CCC/FCC/ROHS/ISO9001

Accessory: Smart page-turning pen+ PC wireless screen casting device

MOQ: 1 Set

Logo: Customized Logo Accept

Operating system: Android+win7/10 Optional

Touch points: 10/20 Infrared Touch

Friends, welcome to our store, you can tell me your specific product requirements, if you need other models of this product, please contact me, I will send the product link for your purchase! WhatsApp/WeChat: Adam +86 19083360991 (Reply within 10 minutes) Email: yihua.adam@gmail.com (Reply within 8 hours)

Product Name

hot sale Wanbao 65 inch Android PC IR touchscreen board interactive digital whiteboard for meeting

Product Description

Design Features

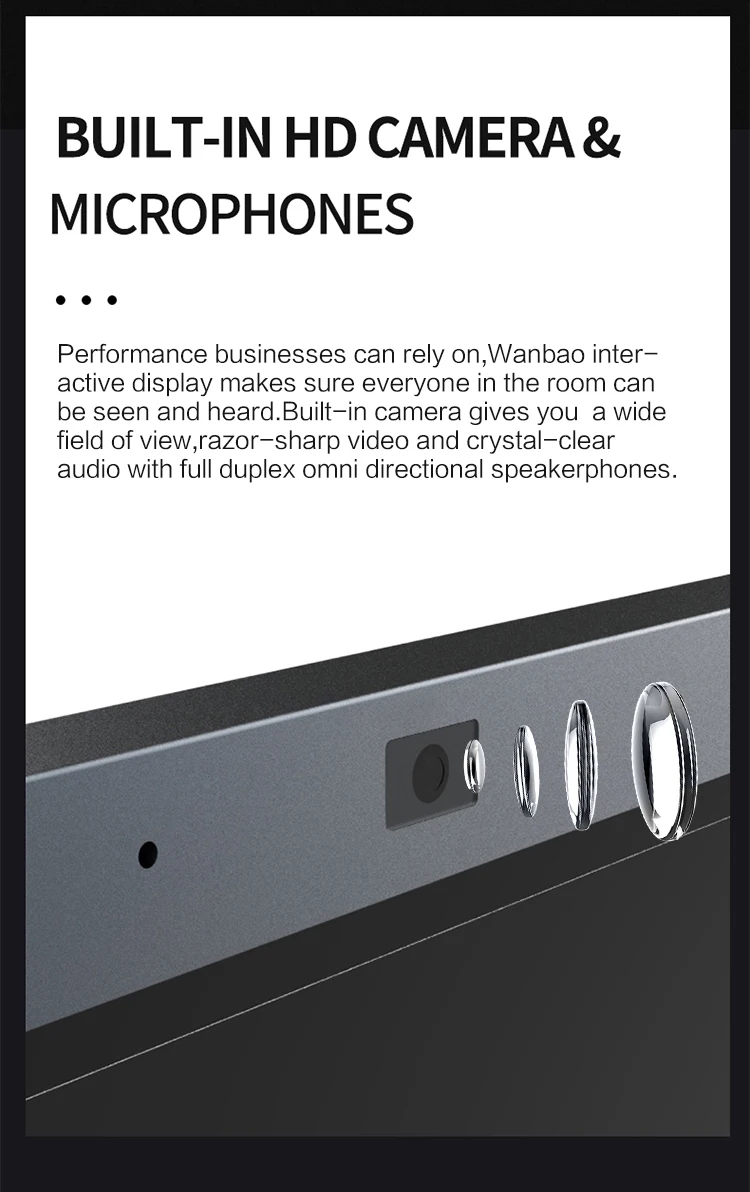

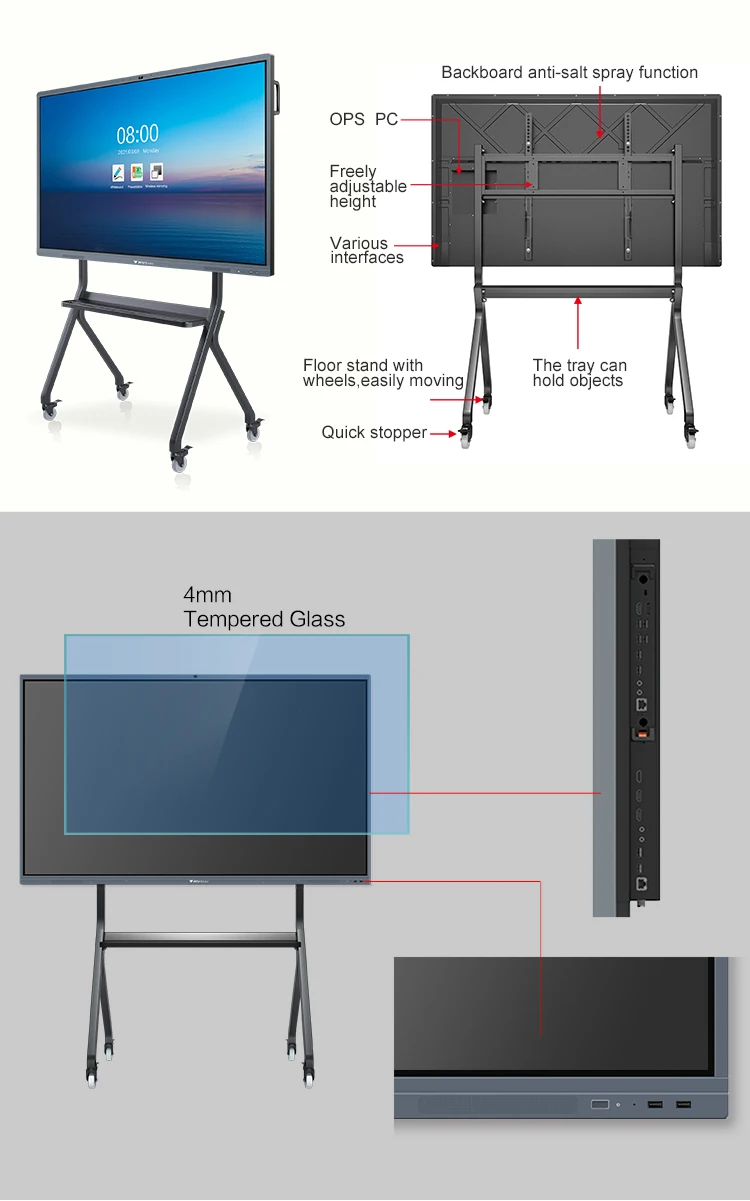

1. It adopts all-aluminum alloy frame structure, anodized surface technology, ultra-narrow frame, rounded corner design. 2. 4mm anti-glare tempered glass. 3. Support 20 points IR touch writing experience. 4. The OPS host module adopts a pluggable structure design, which is convenient for inspection, maintenance and upgrade. 5. Dual-channel PC/Android shared interface, 1 TOUCH-USB, 1 HDMI interface for users to expand 6. One-key start button: Power, Input, Menu, V+, V-, ECO, Home, and independently configured OPS computer channel switching buttons, easy to understand and operate. 7. Built-in 8 mega pixels camera, six-array microphone, 8m pickup distance. 8. The machine intelligently senses the changes in the ambient light and lighting then automatically adjusts the screen brightness to achieve the best display effect in different lighting environments, effectively protecting the eyesight of teachers and students, and achieving energy-saving effects. 9. Intelligently identify the signal source, and automatically jump into the port channel when the external signal is received. 10. Support the pull-up touch menu at the bottom machine, full-channel annotation, board in board, two-color writing, brightness adjustment, screen shots, and quick whiteboard operations and etc. 11. Smart cloud annotation, QR code scanning and sharing, mobile screen projection, wireless screen, remote meeting, VIP reception and other functions. 12. Laser making logo.

Screen parameters
Size	65"	75"	86"	100"
Type	ADS
Response time	8 ms
Display ratio	16:9
Display size (mm)	1428×804	1650×928	1895×1066	2159×1214
Resolution	3840(H)×2160(V)
Pixel pitch (mm)	0.372×0.372	0.429×0.429	0.4935×0. 4935	0.5622×0. 5622
Refresh rate	60Hz	60Hz	60Hz	120Hz
Color brightness	1.07B(10bit)
Color gamut	72%
Contrast ratio	4000:1	1100:1	1200:1	1200:1
Viewing angle	178°(H/V)
Backlight	DLED
Screen brightness	350cd/m 2	350cd/m 2	330cd/m 2	350cd/m 2
lifetime	≥30000h

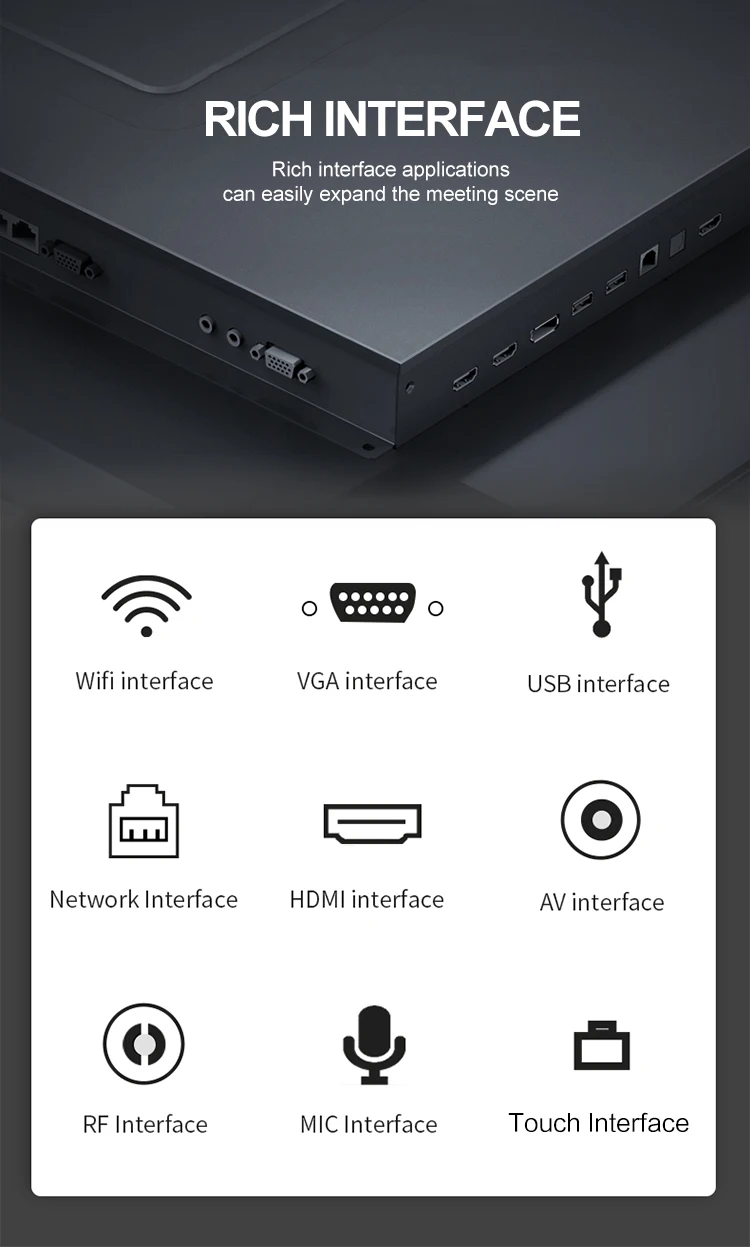

Interface
HDMI in	3	USB 2.0	3	Touch	2
HDMI out	1	USB 3.0	3	VGA in	1
Audio in	1	SPDIF	1	RS232	1
Audio out	1	RJ45 in	1

Wifi
Version	802.11 a/b/g/n/ac
Operating frequency	2.4GHz/5GHz
Operating distance	0~12m
RAM	4GB
Remark	Realize this function through the wireless module SI02

Power
Size	65"	75"	86"	100"
Power input 100-240V~50/60Hz	2.5A	3.0A	5.0A	7.5A
Power consumption	250W	300W	500W	750W
Standby power consumption	≤0.5W

Environmental factory
Operating Temperature	0℃~40℃
Operating humidity	10%~90%RH
Storage temperature	-20℃~60℃
Storage humidity	10%~90%RH
Altitude	≤5000m

PC system (optional)
PC Model	MT31
PC Type	Ultra-thin pluggable Intel Core series modular computer
CPU Configuration	i5,DDR4 8GB,M.2 solid state drive 128GB (SSD)
		i7,DDR4 16GB,M.2 solid state drive 256GB (SSD)
Graphics	Integrated Intel® HD Graphics
Sound card	Integrated HD stereo sound card
Built-in system	Windows 10 Enterprise Edition
HDMI output	1	USB 2.0	2
USB 3.0	2	Microphone input	1
Audio out	1	PC interface	120 pins

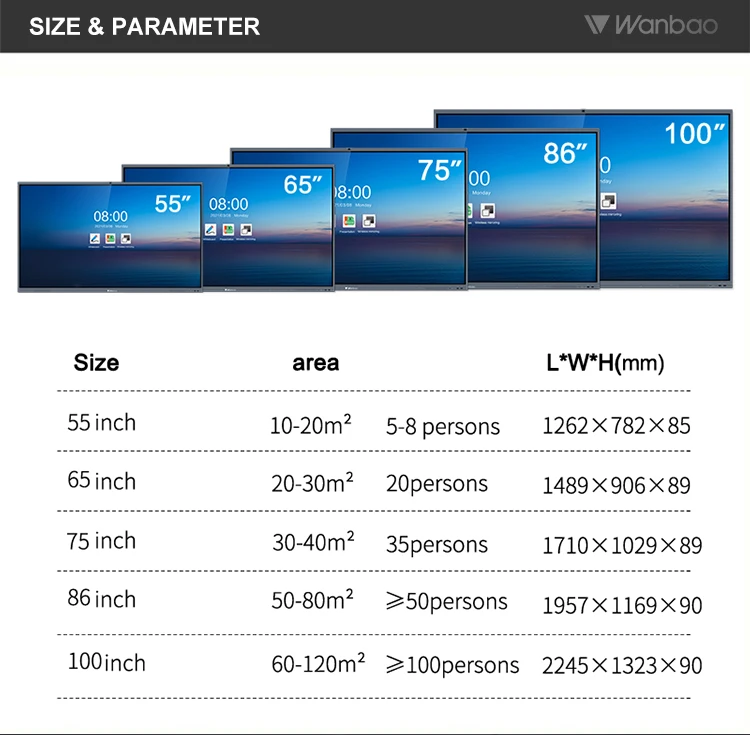

Size
Size	55"	65"	75"	86"	100"
Display size (inch/mm)	1210×680	1428×804	1650×928	1895×1066	2159×1214
Overall size/Weight W×D×H(mm)/kg	1262×782×85 /26	1489×906×89 /37.5	1710×1029×89 /52.3	1957×1169×90 /69.8	2245×1323×90 /102

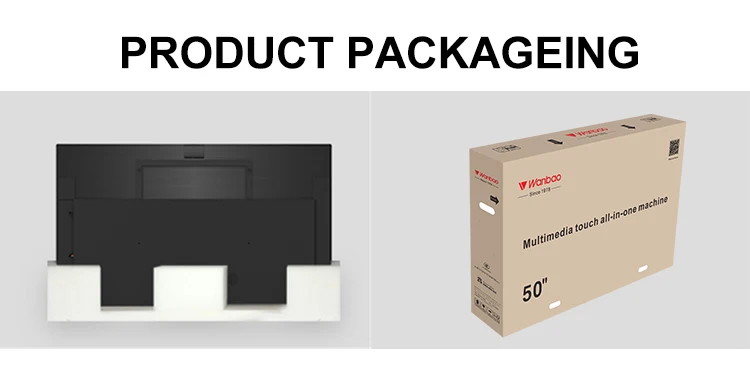

Packing size/Weight W×D×H(mm)/kg	1428×220×878 /36	1656×204×1050 /49.8	1886×210×1196 /66.2	2134×210×1334 /89.4	2483×376×1493 /136
QTY of containers(pcs) 20'GP/40'GP/40'HQ	102/236/254	79/183/197	59/137/148	53/123/133	20/47/50

Application Scenario

Certifications

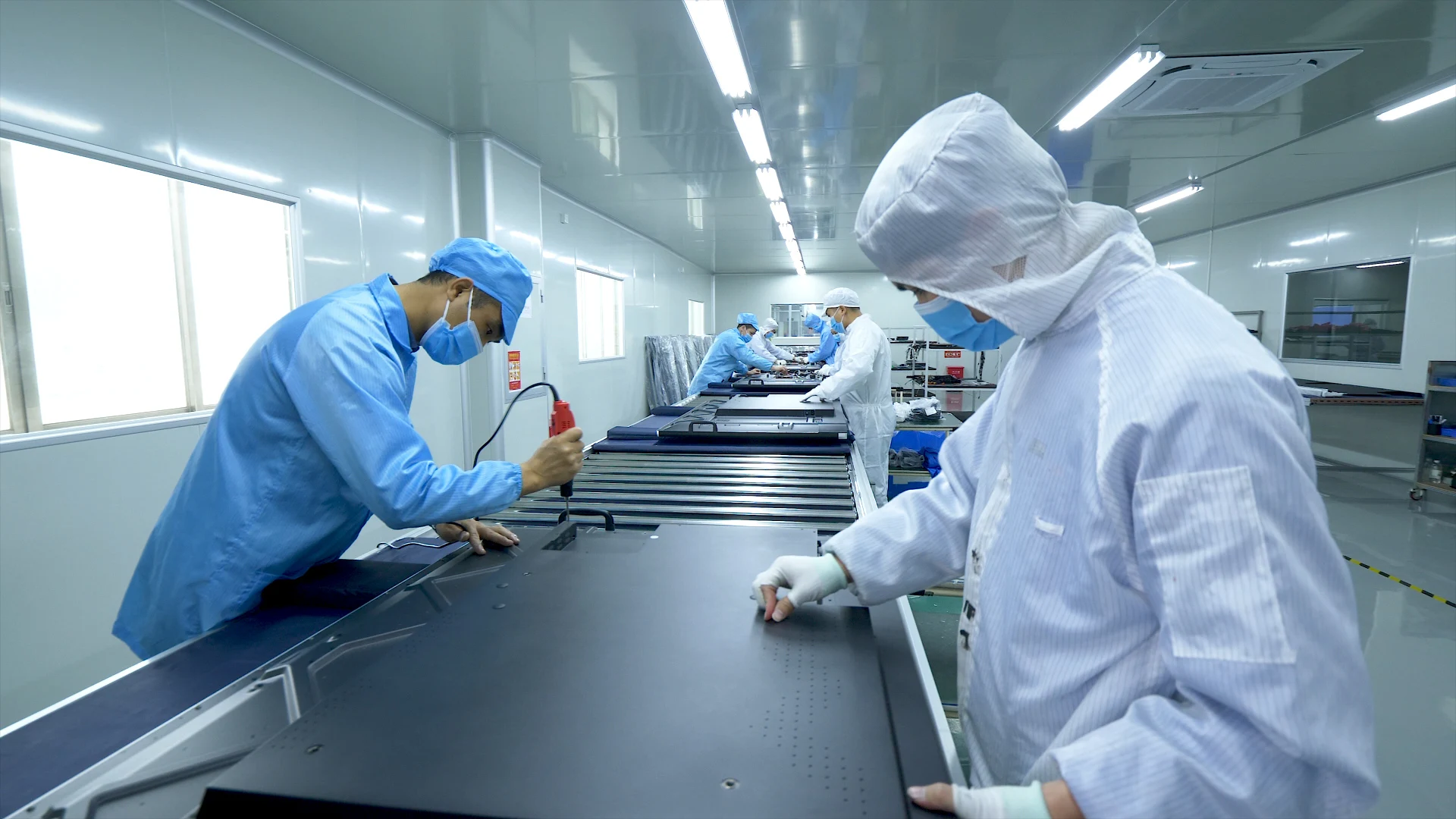

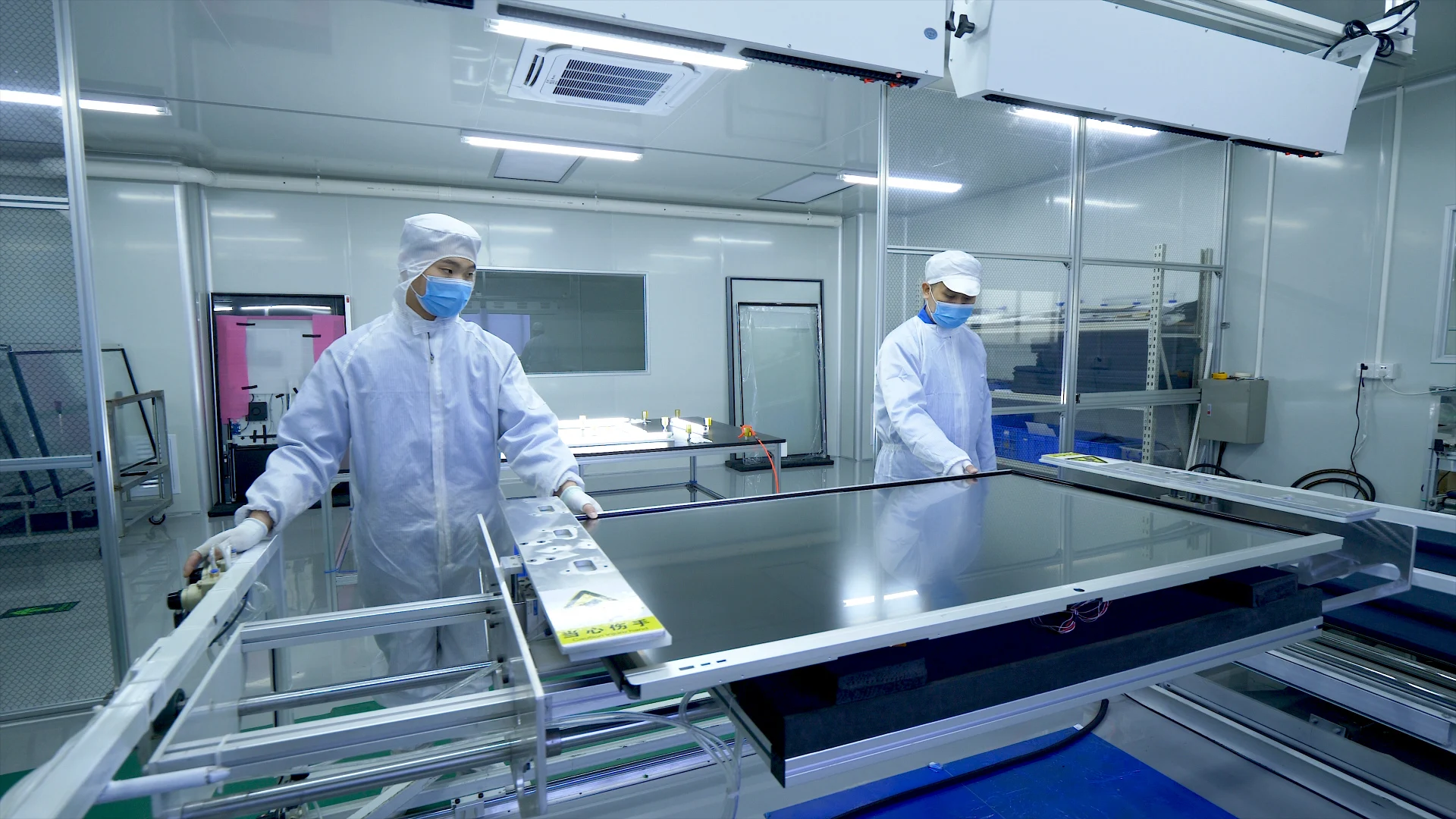

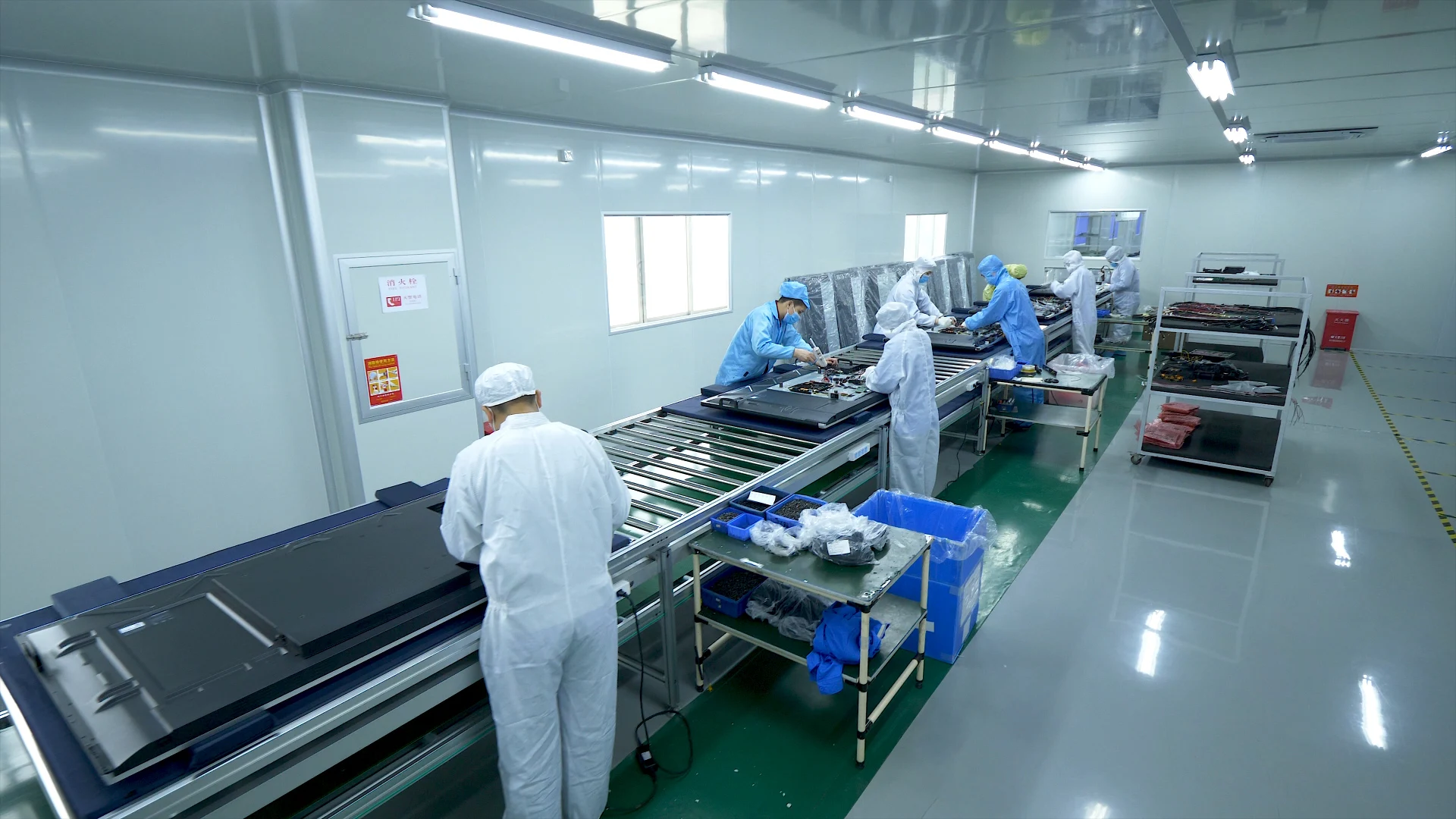

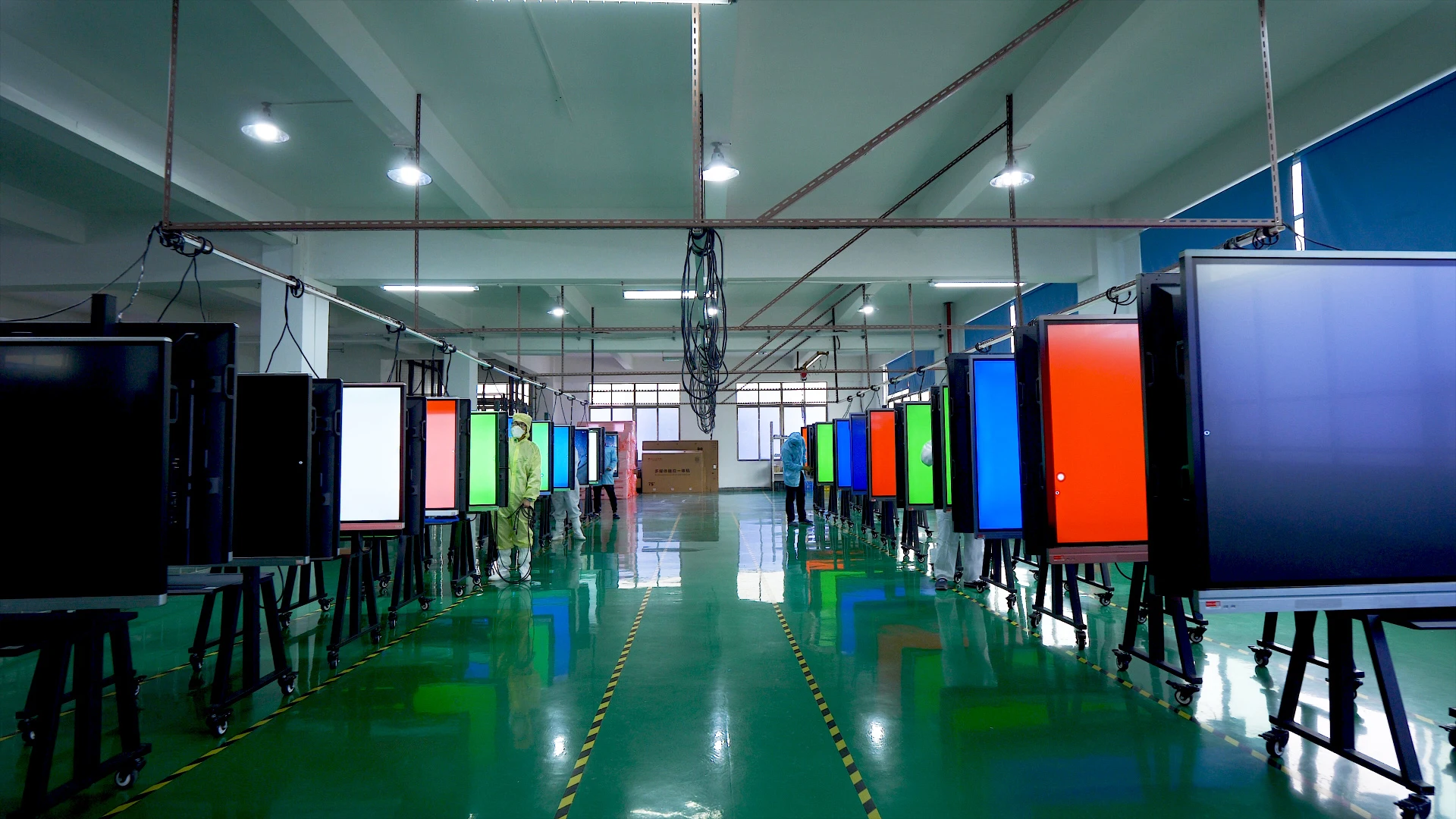

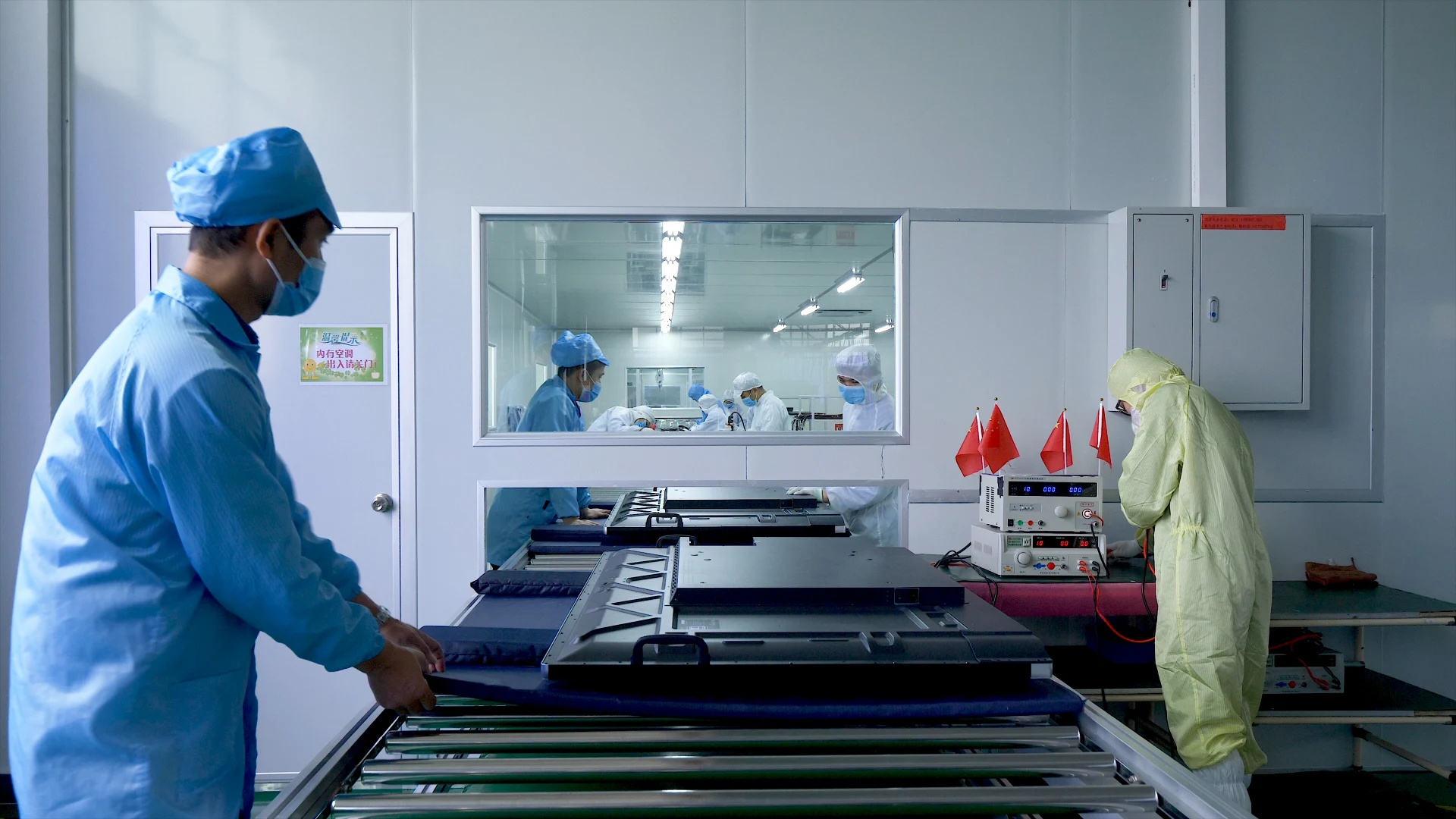

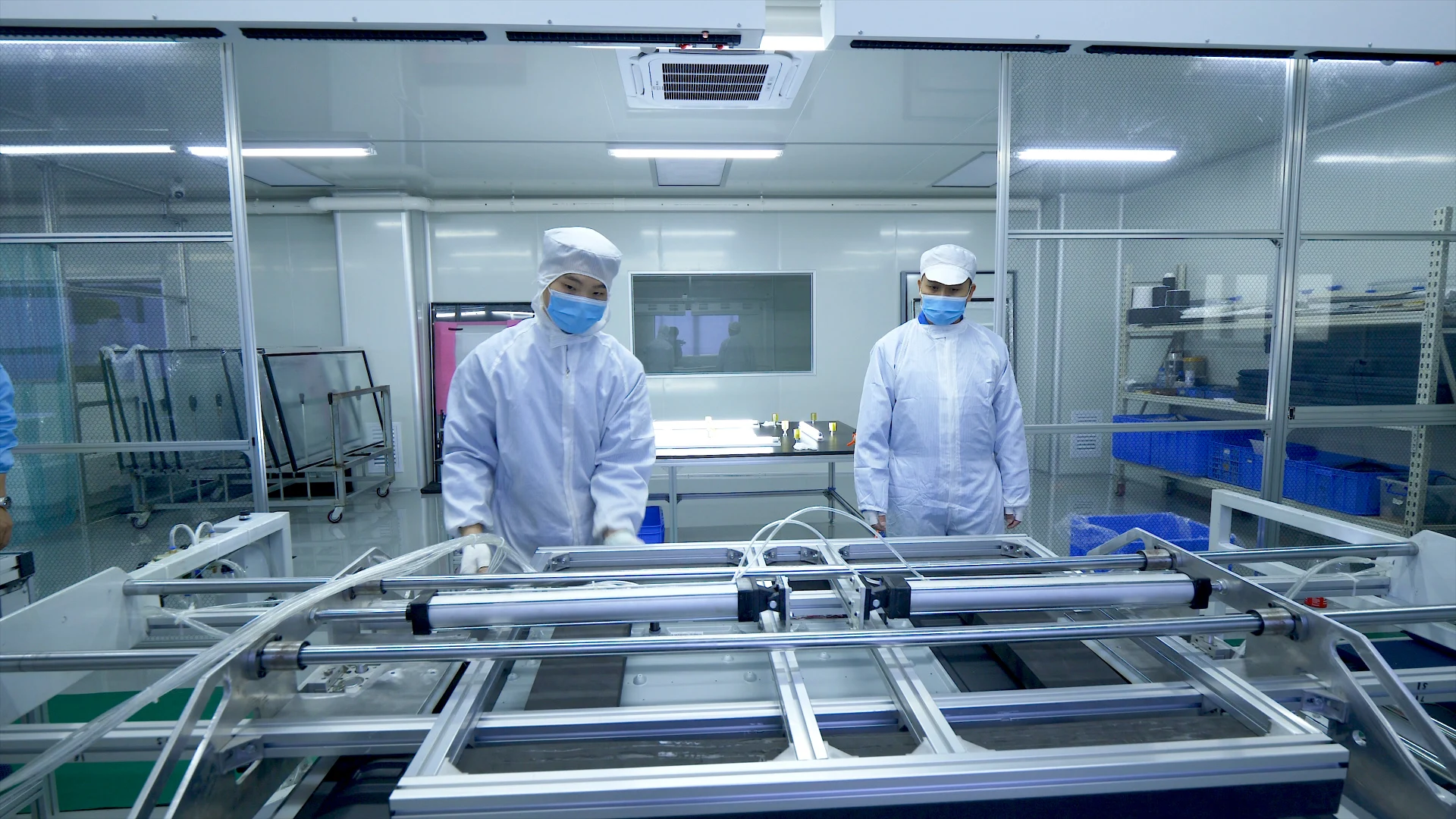

Making process

Exhibition



FAQ

Q:Are you the factory or the trading company?
A:we are the factory in Huadu District, Guangzhou, near the Guangzhou Baiyun International Airport. OEM or ODM service (including model and software system) are provided by us.
Q: What's your MOQ?
A: Generally, our FOB MOQ is 5-10 sets(It depends on the models), but small sample order 1pcs is acceptable.
Q: How long is delivery time?
A: Normally, the delivery time is 5-15 days according to the order quantity/ model/ size of the screens.
Q : Do you have inventory?
A : In order to ensure the delivery time, we usually have 1000 UNITS of various size and model for normal model per month.
Q: How long is the warranty for the product?
A:The warranty period is 1 YEAR for complete machine, but our open cell are A grade LG screen, service life usually is 8-10 years. Provided 1% spare parts: ISO:9001 international quality management system certificated, provide free spare parts to do the maintenance if there are defects in the warranty period.
Q:What payment method your company accept?
A:We accept most of the payment methods, it is mainly by TT/Western Union.
