SPECIFICATIONS

Brand Name: ZUIDID

Origin: Mainland China

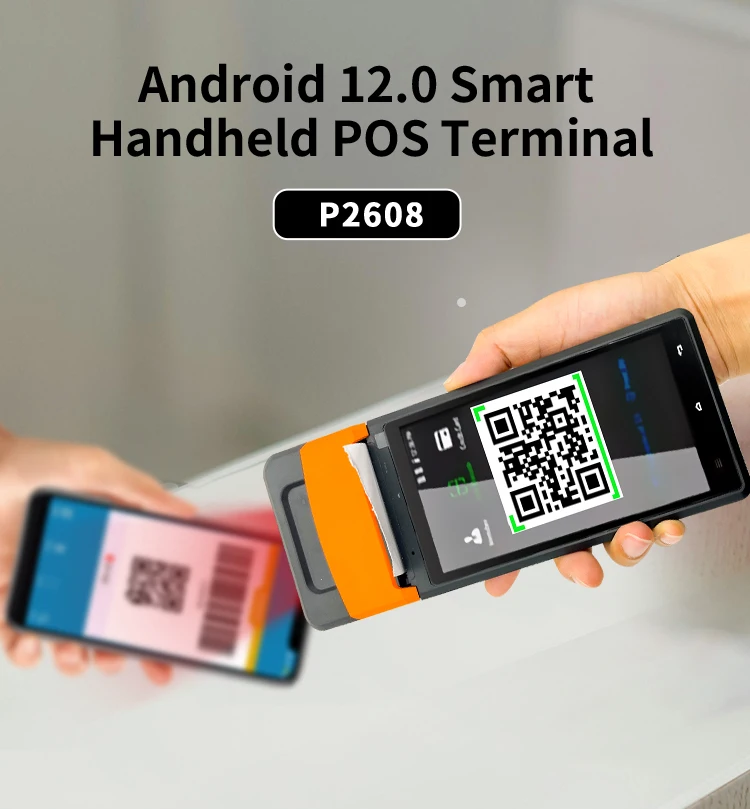

Model Number: P2608

Country of Origin: China

Screen Size: 5.5 inch

CPU: MTK 6762-4 core

RAM: 2gb

SSD: 16GB

Operation System: Android

Compatible Devices: /

Connectivity technology: usb, bluetooth, NFC, wifi

printer technology: thermal printing

Battery Capacity(mAh): 5600mAh

Sheet Size: Paper width: 57.5±0.5mm

Place of Origin: China

Dimensions: 320*78*17mm

Weight: Approx. 350g

LCD Screen Resolution: 1440*720

Front Camera: Front 5.0MP

Rear Camera: Rear 13MP,Auto Focus with Flash

Battery Capacity: 3.7V/5600mAh

CPU Speed: 2.0GHz

RAM+ROM: 2GB+16GB (3GB+32GB optional)

Operating System: Android 12

NFC: Support NFC

Products Description

Product Paramenters

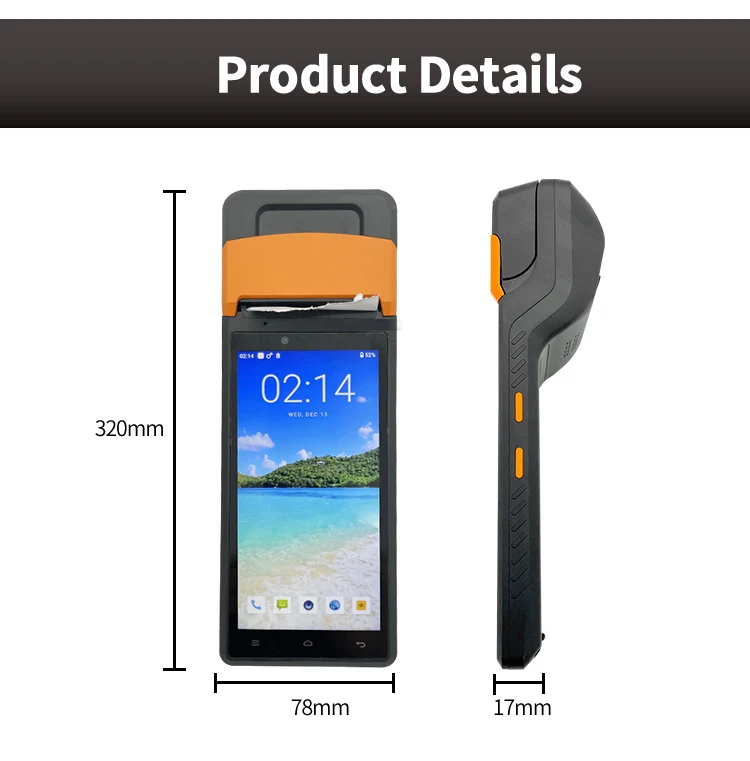

Dimensions	320*78*17mm
Weight	Approx. 350g

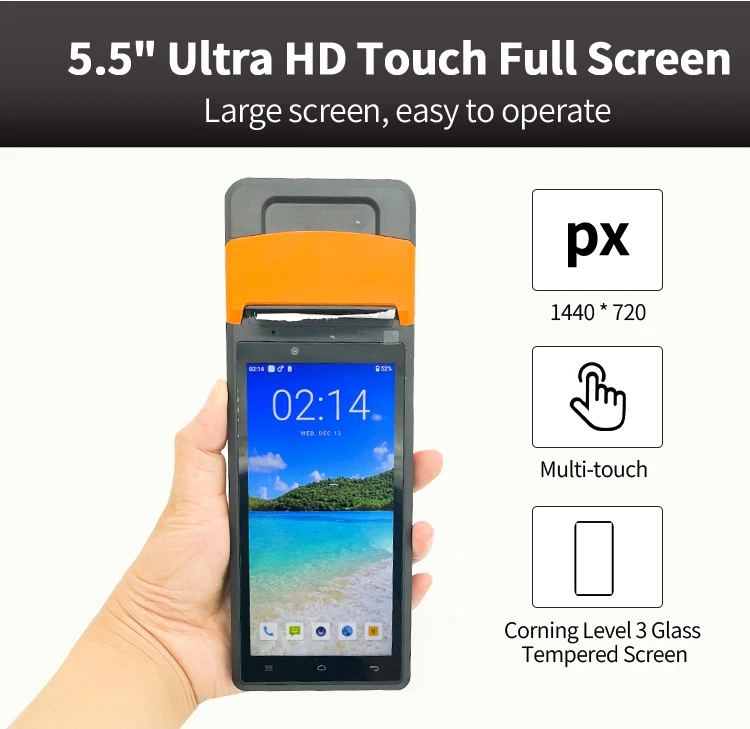

LCD Screen Resolution	1440*720
LCD Screen Size	5.5 inch
TP Touch Screen	Multi-touch, Corning 3-stage glass tempered screen
Front Camera	Front 5.0MP

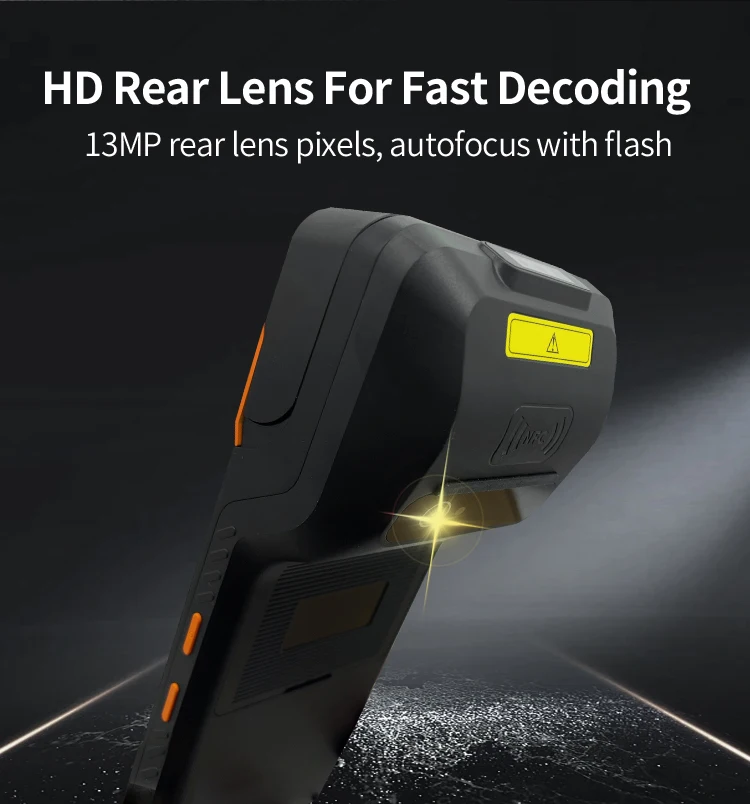

Rear Camera	Rear 13MP,Auto Focus with Flash
Built-in Speaker	Built-in 8Ω/0.8W waterproof speaker x 1
Built-in microphone	Sensitivity: -42db, Output Impedance 2.2kΩ
Battery	Non-removable Lithium Polymer Battery
Battery Capacity	3.7V/5600mAh
Battery Life	Approx. 8 hours (standby time > 300h)
CPU Type	MTK 6762-4 core
CPU Speed	2.0GHz
RAM+ROM	2GB+16GB (3GB+32GB optional)
Operating System	Android 12
NFC	Support ISO/IEC 14443A protocol, card reading distance: 1-3cm
WIFI Module	WIFI 802.11 b/g/n/a/ac Frequency 2.4G+5G Dual Band WIFI,
Built-in BT	BT5.0(BLE)
2G/3G/4G	CMCC 4M: LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41; WCDMA 1/2/5/8; GSM 2/3/5/8
Positioning	BeiDou/GPS/Glonass positioning

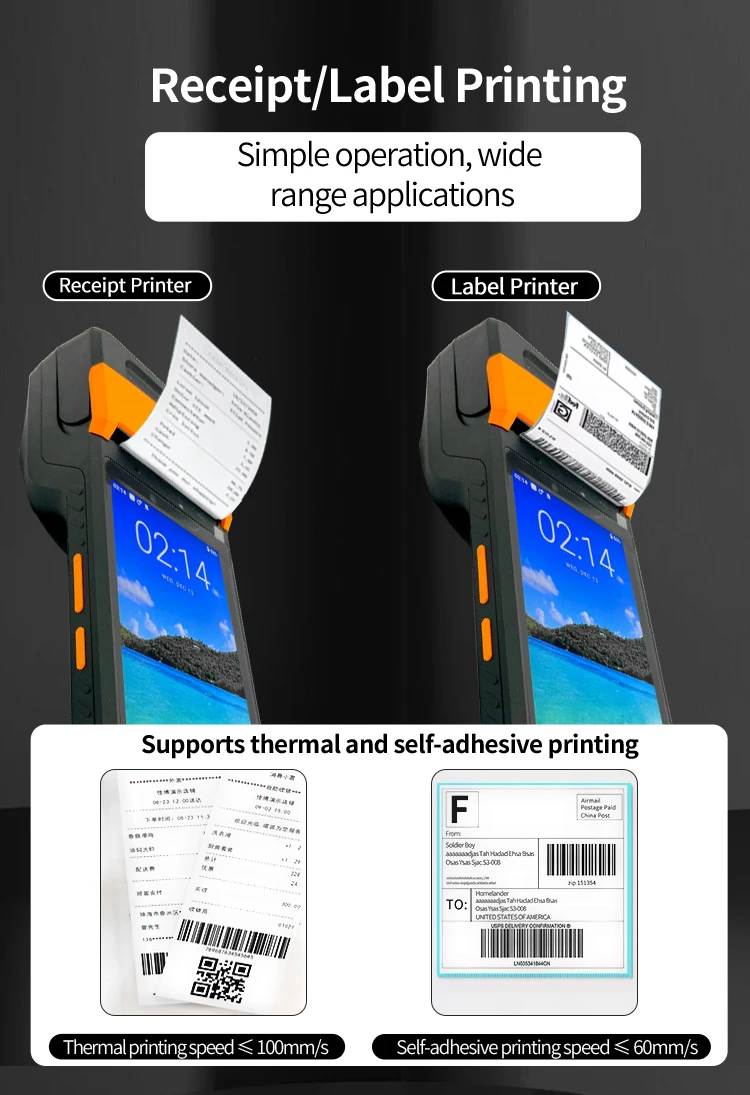

Printing function as standard	Printing method: line type thermal printing
		Printing dots: 384 dots/line
		Printing width: 48mm

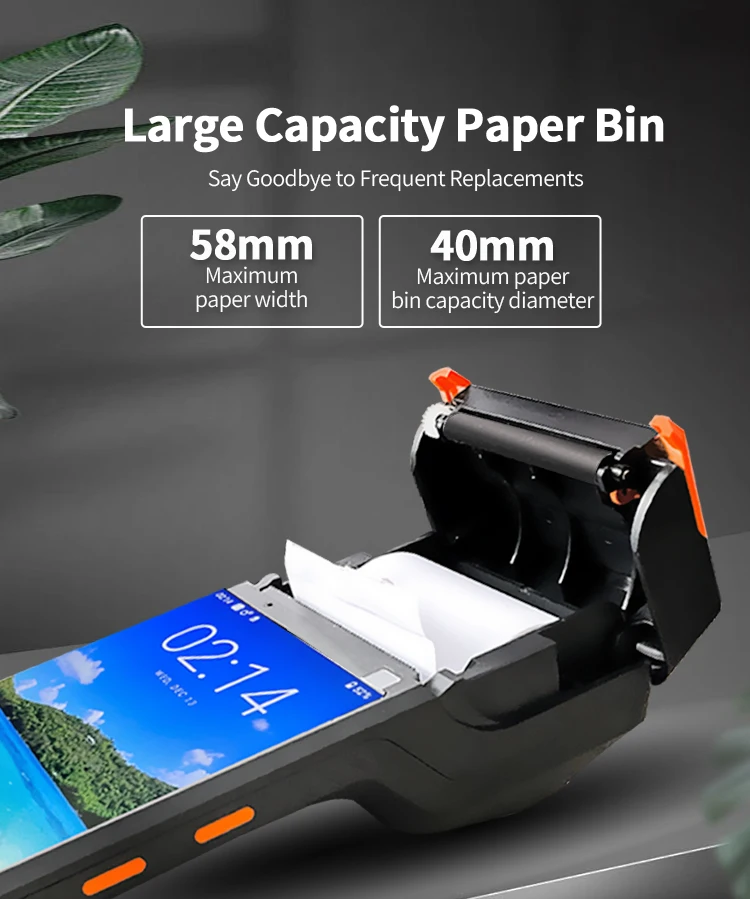

		Paper width: 57.5±0.5mm/thickness 0.1
		Maximum print speed: 100mm / sec (ticket printing) / 60mm / sec (self-adhesive labels)
		Printer operating temperature: 0-50°

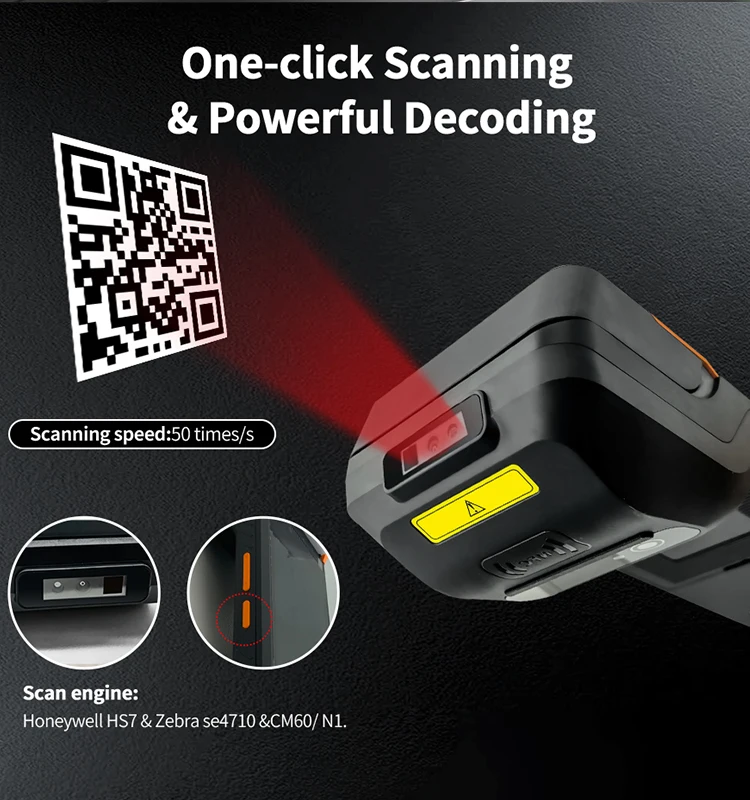

QR code option	honeywell hs7 & zebra se4710 & cm60/n1
		Optical resolution:5mil
		Scanning speed:50 times/s
		Support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse

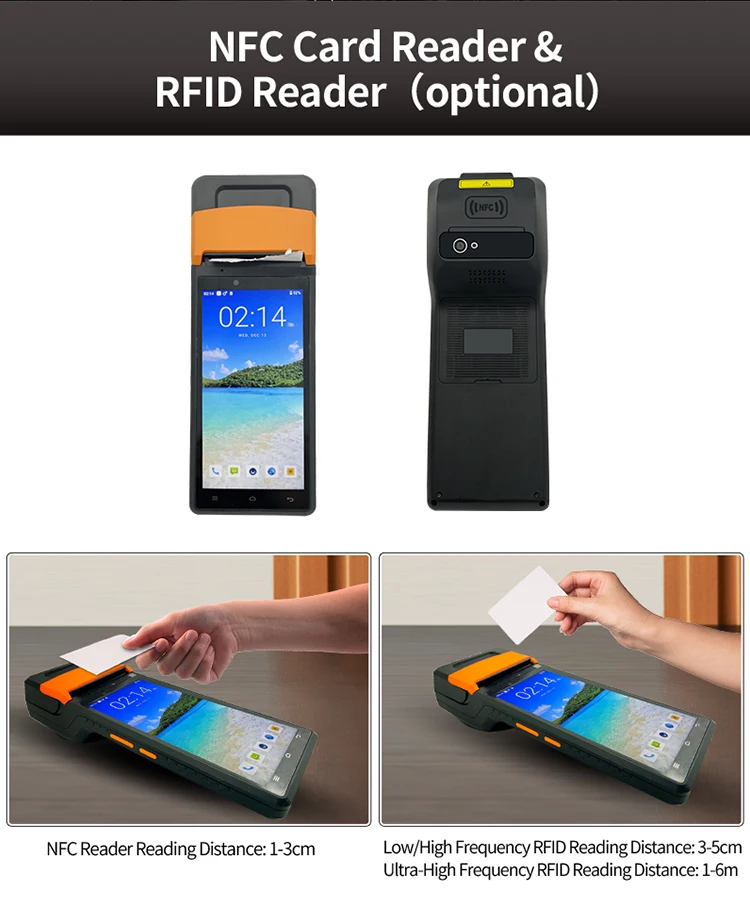

Low Frequency	Support 125K and 134.2K; effective recognition distance 3-5cm
High Frequency	13.56Mhz, support 14443A/B;15693 protocol, effective identification distance 3-5cm
Ultra high frequency	China frequency: 920-925Mhz; U.S. frequency: 902-928Mhz; Europe frequency: 865-868Mhz
		Protocol standard: EPC C1 GEN2/ISO18000-6C
		Antenna parameters: ceramic antenna (1dbi)
		Reading distance: according to different tags effective distance 1-6 meters
Drop height	150cm On state
Working Temperature	-20 °C to 55 °C
Storage Temperature	-20 °C to 60 °C
Humidity	Humidity: 95% Non-Condensing

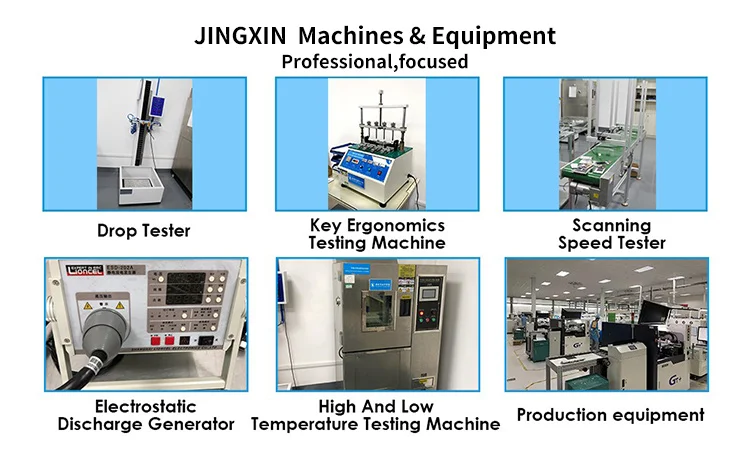

Company Profile
