Customized High Quality Kubota Engine 2.5 Ton Hydraulic Mini Excavator Construction Machinery 1800KG Micro Excavation With Cabin
Customized High Quality Kubota Engine 2.5 Ton Hydraulic Mini Excavator Construction Machinery 1800KG Micro Excavation With Cabin
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Macward
Applicable Industries: HOME USE
Core Components: Engine
Machinery Test Report: Provided
Hign-concerned Chemical: None
Engine Brand: KUBOTA
Key Selling Points: Multifunctional
Video outgoing-inspection: Provided
Showroom Location: CHINA
Rated Power: 20HP
Warranty: 1.5 Years
Place of Origin: China
Type: Crawler Tractor
Condition: New
Warranty of Core Components: 1.5 Years
Origin: Mainland China
Certification: CE,EPA,ISO
Power(W): 20KW
Operating Weight: 2500kg
Bucket Capacity: 0.075m³
Bucket Max.digging force: 19.5kN
Track width: 250mm
Hydraulic system pressure: 18MPa
Overall length: 4185mm
Overall width: 1500mm
Boom deflection: 45°
👑Landward Factory Store👑
Please note: fans of the store can enjoy additional discounts, the number of places is limited, and payment through the AliExpress platform can enjoy a 7-day no-reason refund, so please rest assured to place orders and pay!!!
Ask us now and you will get:
👑VIP one-to-one service👑
+
👑Super preferential price👑
+
👑One and a half years of free after-sales service👑
+
👑Priority delivery👑
+
👑Personalized customization👑
+
👑Video inspection👑
Please note: This machine is a customized product, please contact customer service for more favorable prices.
All price is based on FOB Qingdao, China, please consult our sales for more details if you need other delivery solutions.
XT25U Mini Excavator | |
Operating weight (kg) |
2500 |
Bucket capacity (m3) |
0.075 |
Engine model |
Changchai 390 / Kubota D1105 |
Rated power |
20kW/2200rpm |
Hydraulic system pressure(MPa) |
18 |
Bucket Max.digging force(kN) |
19.5 |
Overall length (mm) |
4185 |
Overall width (mm) |
1500 |
Overall height （to top of cab）(mm) |
2450 |
Boom deflection |
45° |
Front and rear wheelbase (mm) |
1560 |
Left and right track gauge (mm) |
1200 |
Min.ground clearance(mm) |
230 |
Tail swing radius |
936 |
XT35U Mini Excavator | |
Overall Machine Weight |
3500KG |
Bucket Capacity |
0.11m³ |
Engine Model |
Kubota 1703 |
Engine Power |
18.5KW/2200rpm |
Total Length(Transportation State) |
4945mm |
Full Width(Transportation State) |
1700mm |
Full Height(Transportation State) |
2585mm |
Number Of Supporting Wheels |
Eight Pieces |
Track Width |
300mm |
Counterweight Ground Clearance |
595mm |
Minimum Ground Clearance |
270mm |
Wheel Spacing |
1750mm |
Rotation Speed |
12/rpm |
Fuel Tank Capacity |
40L |
Hydraulic Tank Volume |
41L |
Overall Machine Pressure |
22Mpa |

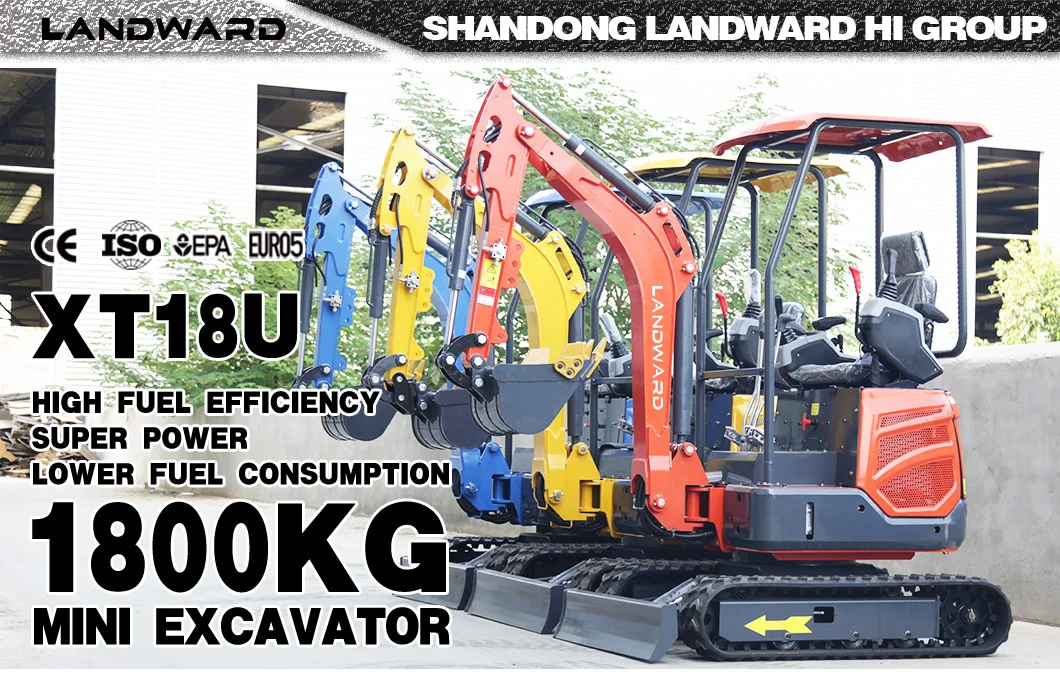

XT18U Mini Excavator | |
Operating weight (kg) |
1800 |
Bucket capacity (m3) |
0.045 |
Engine model |
Laidong 385 / Kubota D902 |
Rated power |
20kW/11.2kW |
Volume of fuel tank (L) |
12 |
Travel speed (km/h) |
2 |
Swing speed(r/min) |
12.3 |
Setting pressure (KPa) |
20 |
Bucket digging force(kN) |
7.5 |
Volume of hydraulic tank (L) |
10 |
Overall length (mm) |
2550 |
Overall width (mm) |
1100 |
Overall height（to top of cab）(mm) |
2200 |
Track length (mm) |
1800 |
Track width (mm) |
250 |
Max. digging height (mm) |
2900 |
Max. dumping height (mm) |
1950 |
Max. digging depth (mm) |
1900 |
Max. digging reach (mm) |
3227 |
Min. swing radius (mm) |
840 |
Hydraulic oil radiator |
Standard |
Boom swing |
optional |
Tracks extandable |
990-1160mm,optional |
XT10 Mini Excavator | |
Operating Weight |
1000KG |
Bucket capacity |
0.025m³ |
Engine Model |
Koop/Briggs&Stratton |
Rated Power |
7KW/12HP |
Travel Speed |
2.2KM/H |
Volume of fuel tank |
10L |
Travel Speed |
2.2KM/H |
Swing speed |
12.3r/min |
Setting pressure |
20KPa |
Bucket digging force |
7.5KN |
Volume of hydraulic tank |
10L |
Great honor for us to have your interest in our small machine and hope you have a good time in our store. Thank you!
Please note: All our mini excavators are to be customized, please contact our sales to confirm detail information before/after placing your order. You will be treated friendly and sincerely, and you will find that will be very helpfu
