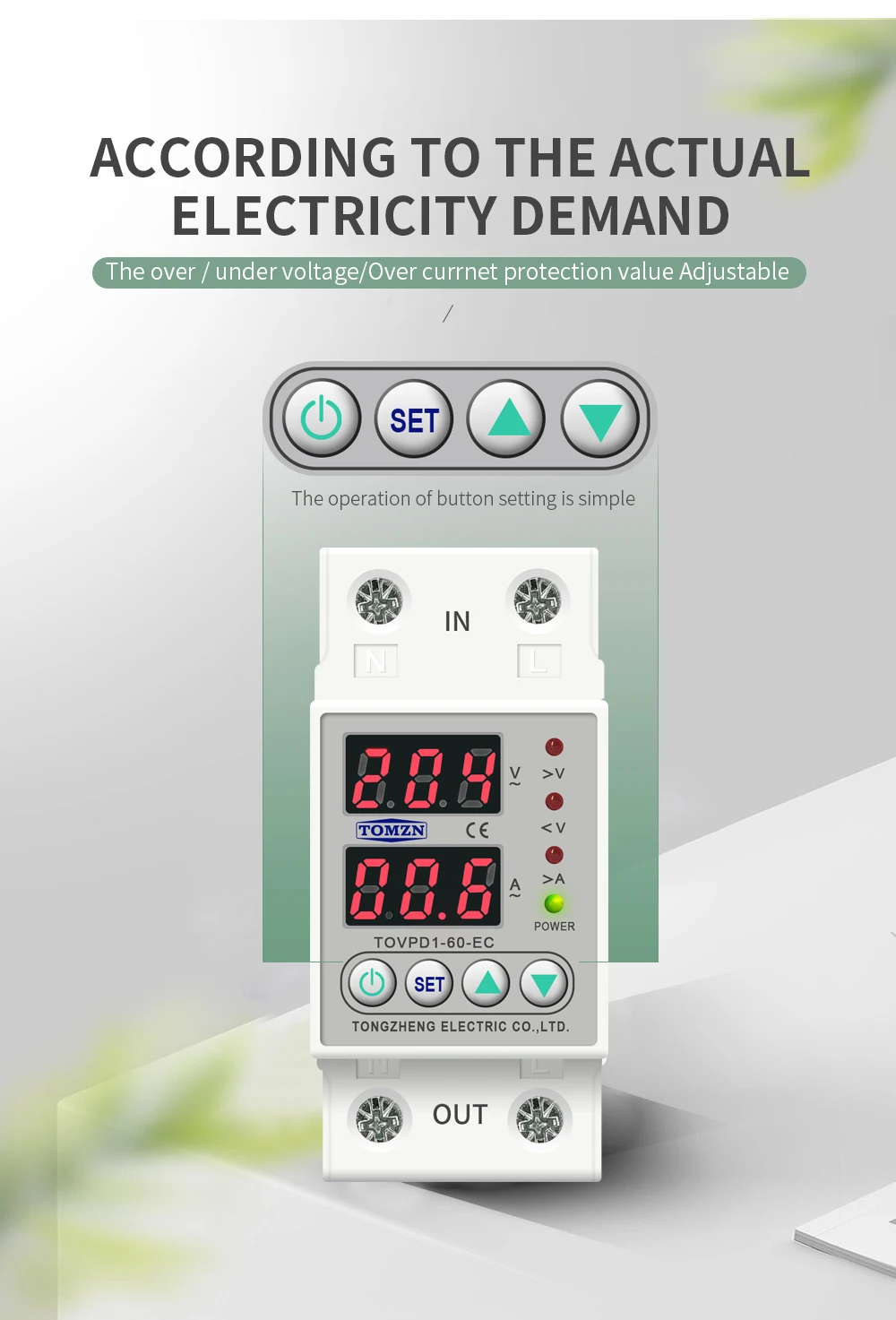

Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 40A 63A 80A 220V 230V

Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 40A 63A 80A 220V 230V

$29.20 USD
$0.00 USD $29.20 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: TOMZN

Hign-concerned Chemical: None

Type: Voltage protector

Origin: Mainland China

is_customized: Yes

Model Number: TOVPD1-60-EC

Is Smart Device: no

Certification: CE

Under voltage protection: 140V-210V(adjustable) (default: 160V)

Over voltage proteciton: 230V-300V (adjustable) (default: 280V)

Over current protection: 1A-80A (adjustable) (default: 20A)

Reconnect time: 3s-300s (default: 5A)

Choice: yes

semi_Choice: yes

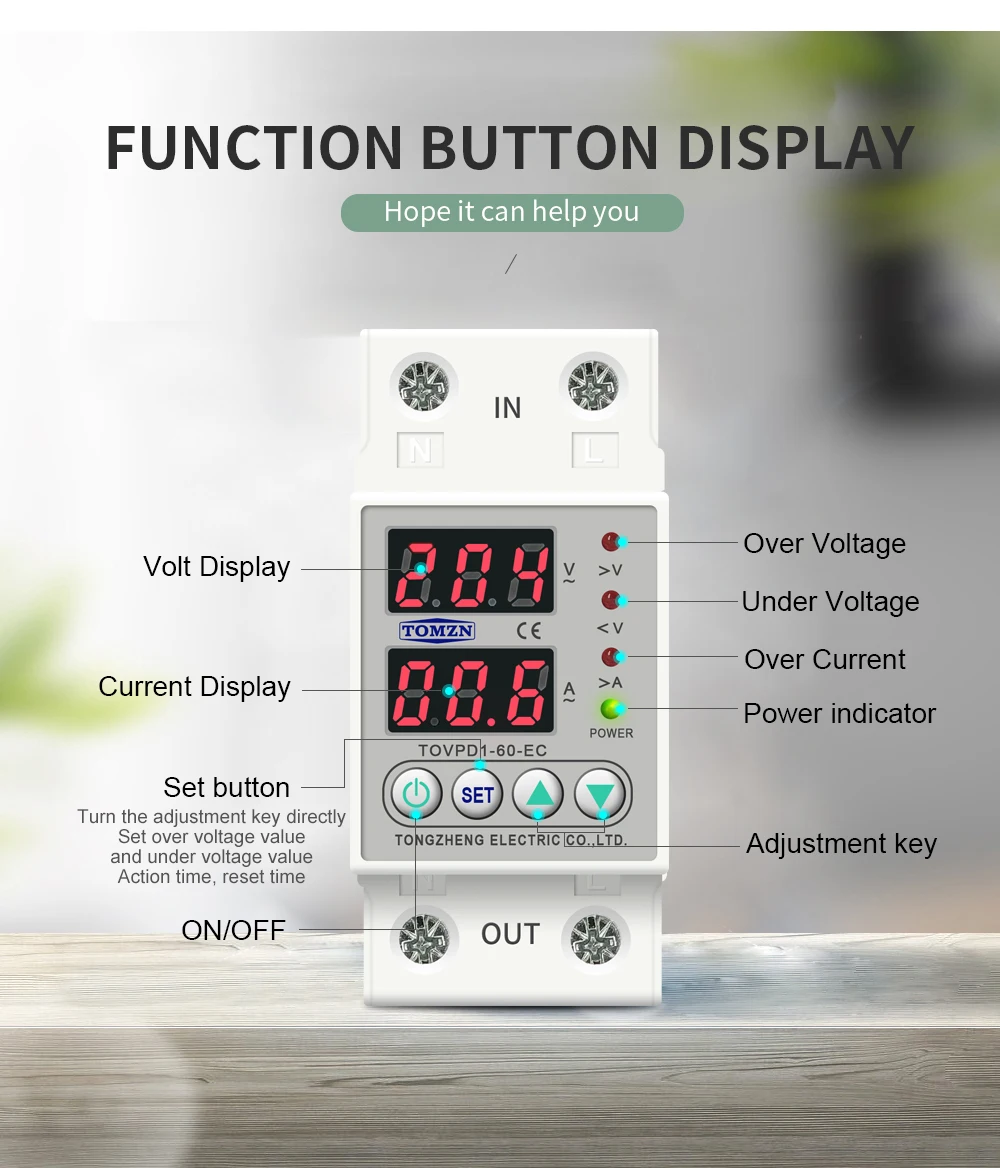

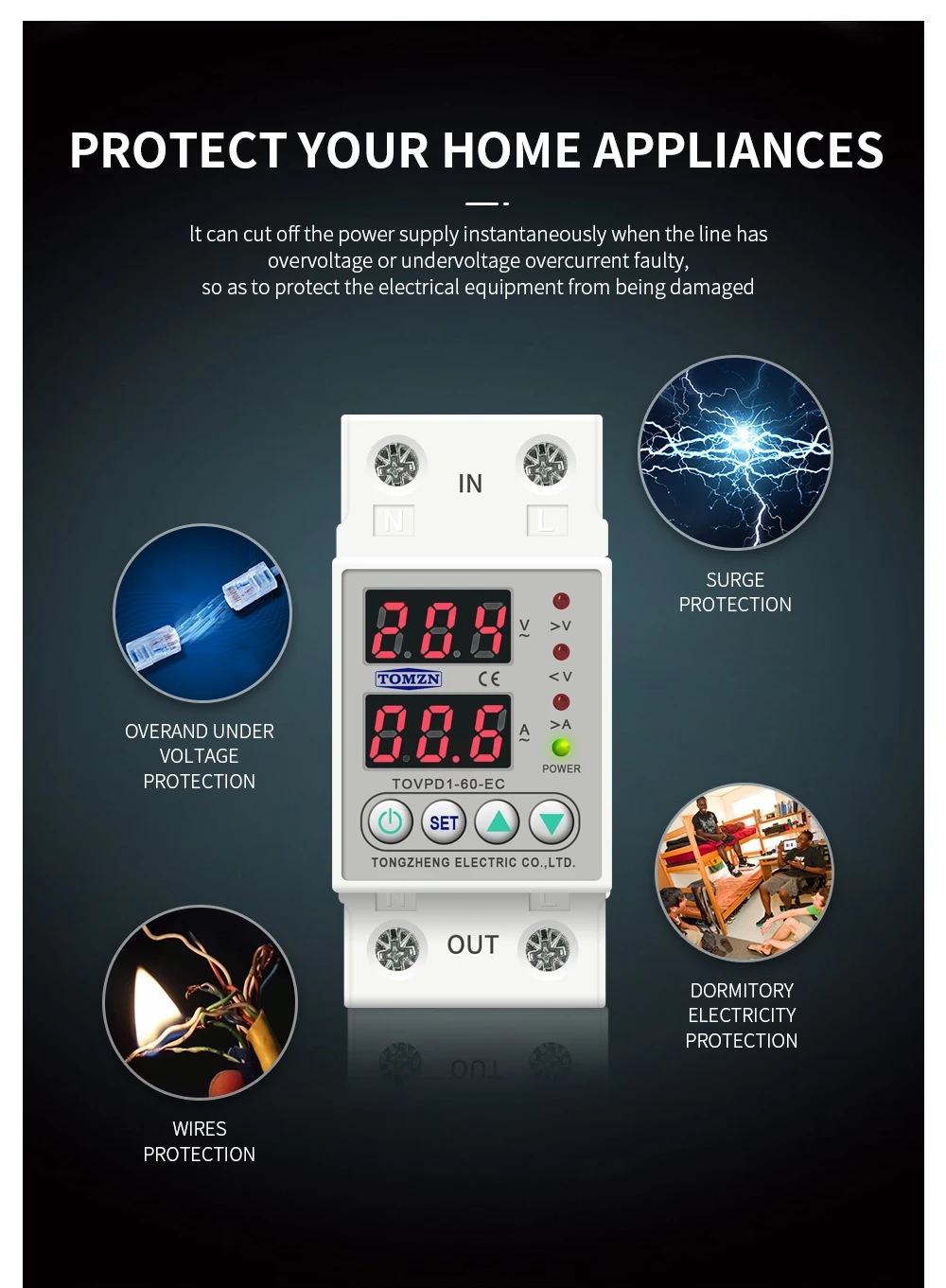

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

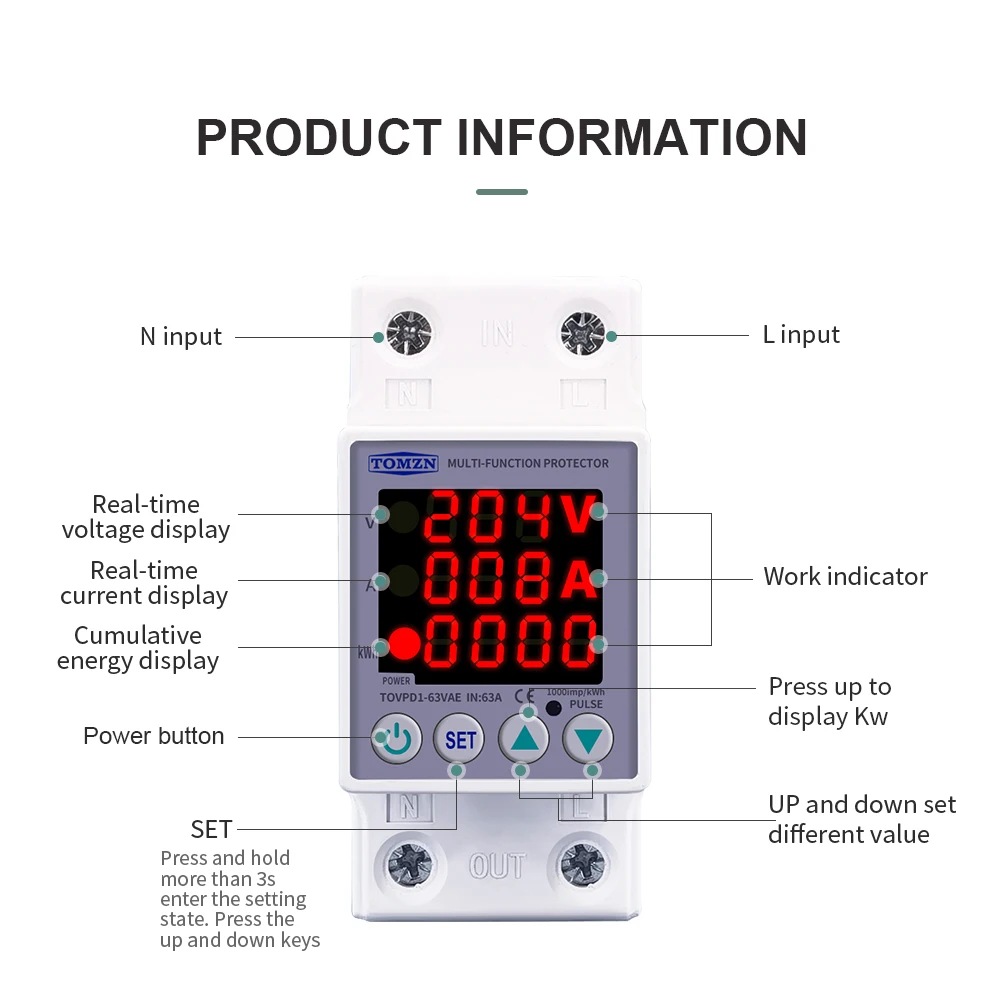

5.Voltage display(voltage measurement)
6.Current display (current measurement)

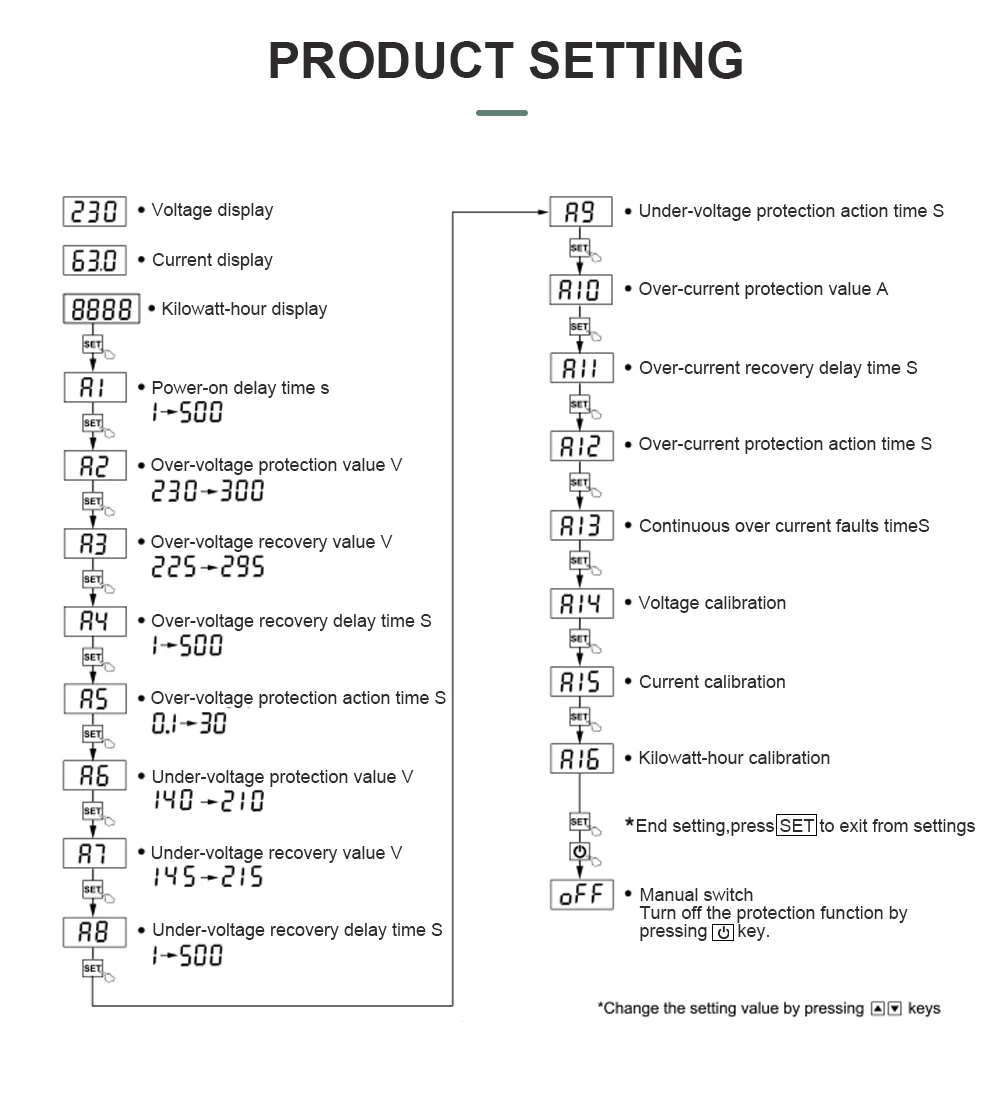

7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S

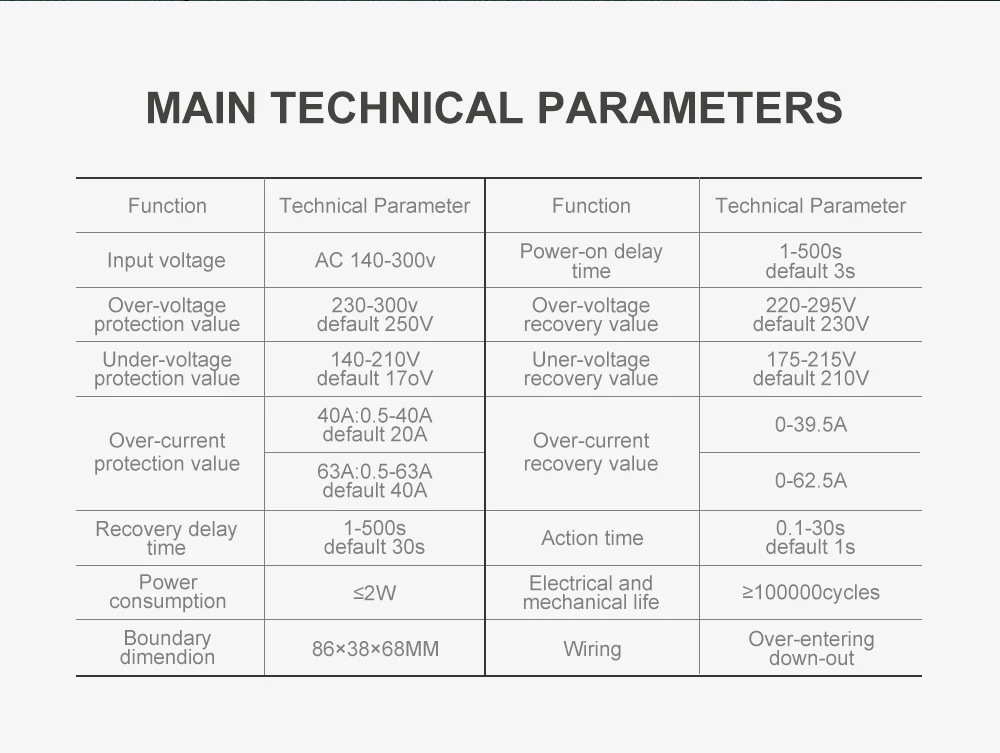

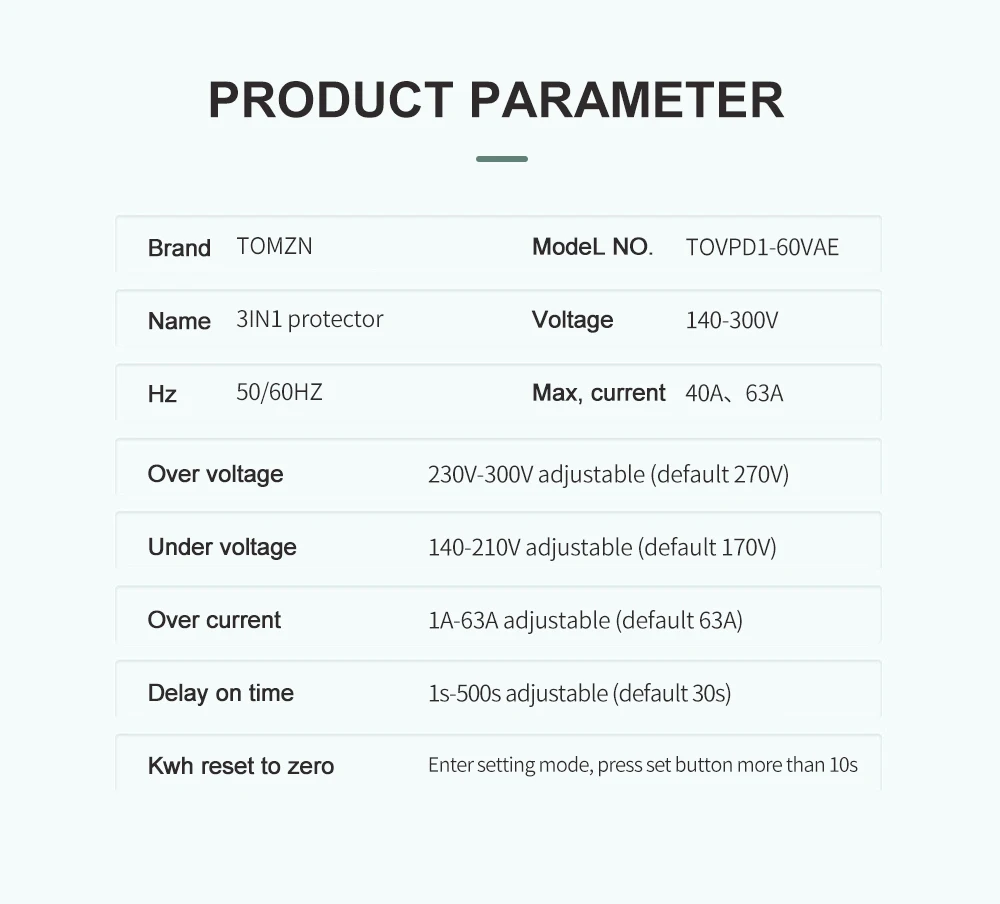

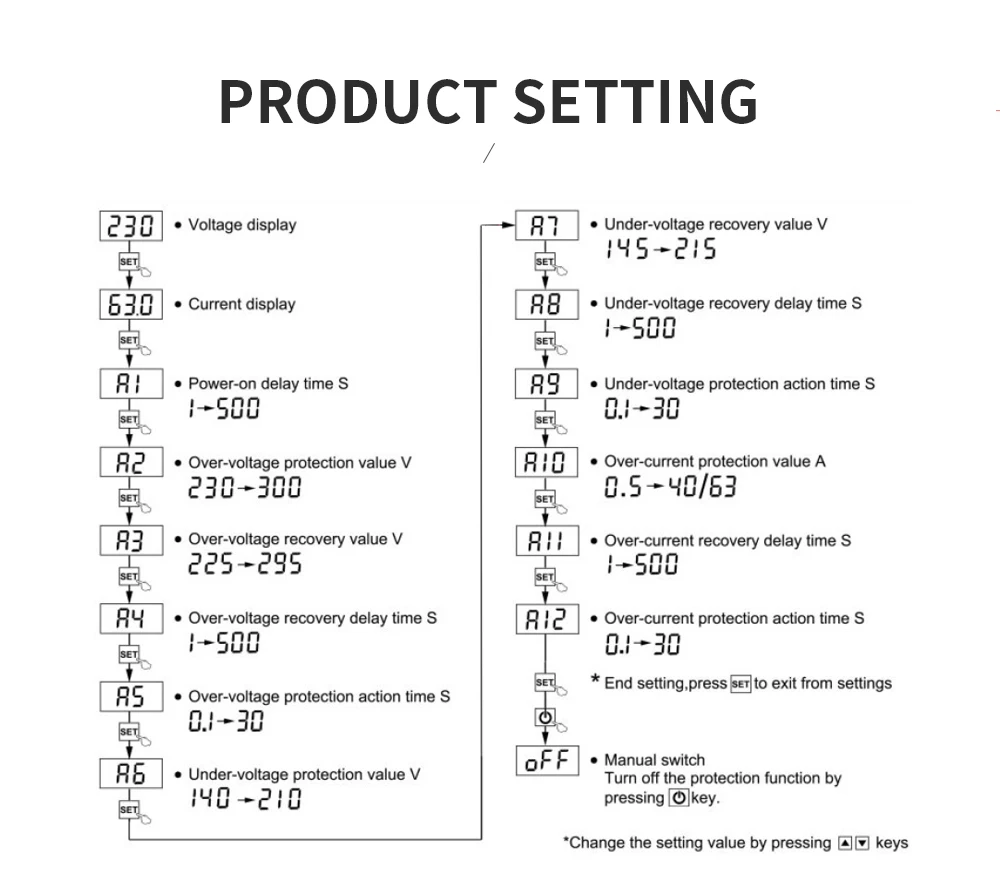

Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable(default:40A)
                                    1~63A  Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
 Over-voltage recovery voltage range:225V--295V(default:250V)
   Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
 Under-voltage recovery voltage range:145V--215V (default:190V)
   Under-voltage protection action time:0.1s~30s(default:0.5s)
   Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)
   Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

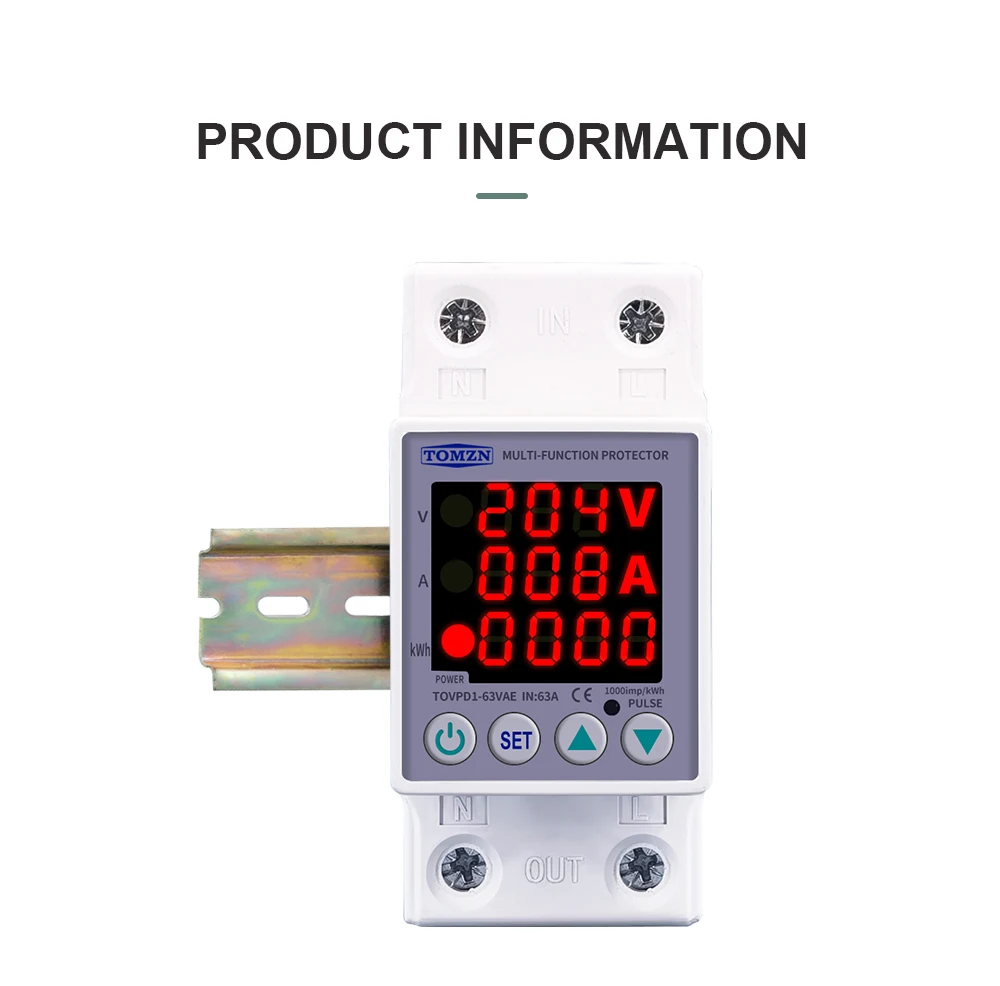

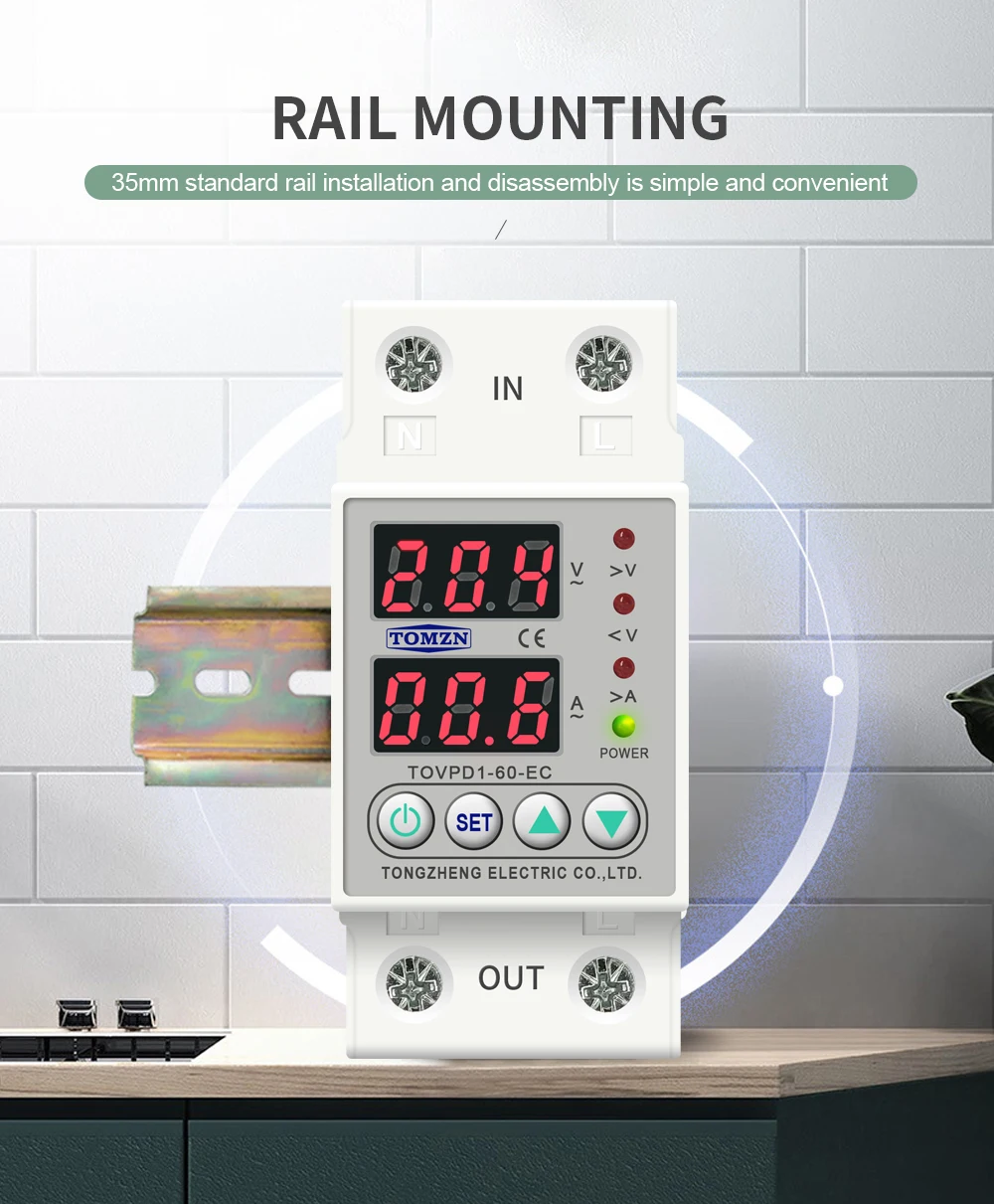

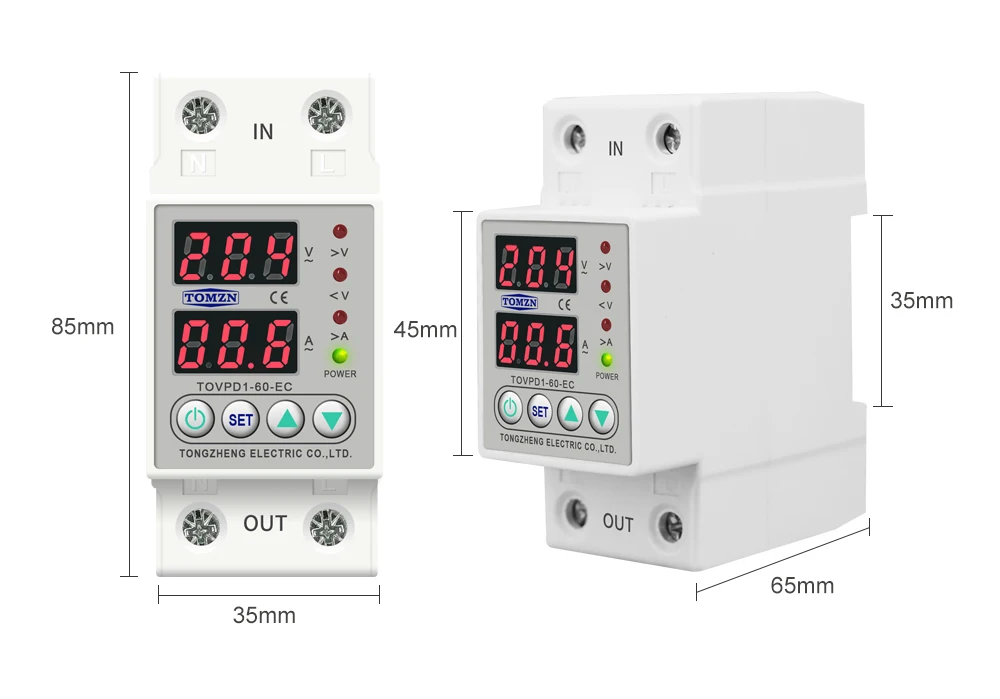

11.Installation:35mm DIN rail
110V Version
2.Power supply:110VAC 50/60Hz
3.Max.Loading power:1~63A Adjustable(default:63A)
4.Over-voltage protection value range:80V~300~OFF(default:145V)
Over-voltage recovery voltage range:75V--295V(default:140V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V--300V --OFF(default:90V)
Under-voltage recovery voltage range:85V--305V (default:95V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installation:35mm DIN rail

A13 Voltage adjustble +-%9.5

A14 Current limit times: 1-20 times (default off)

Restore factory settings: Press the down button for more than 12s
Fault inquiry: Press the UP button for more than 12S
